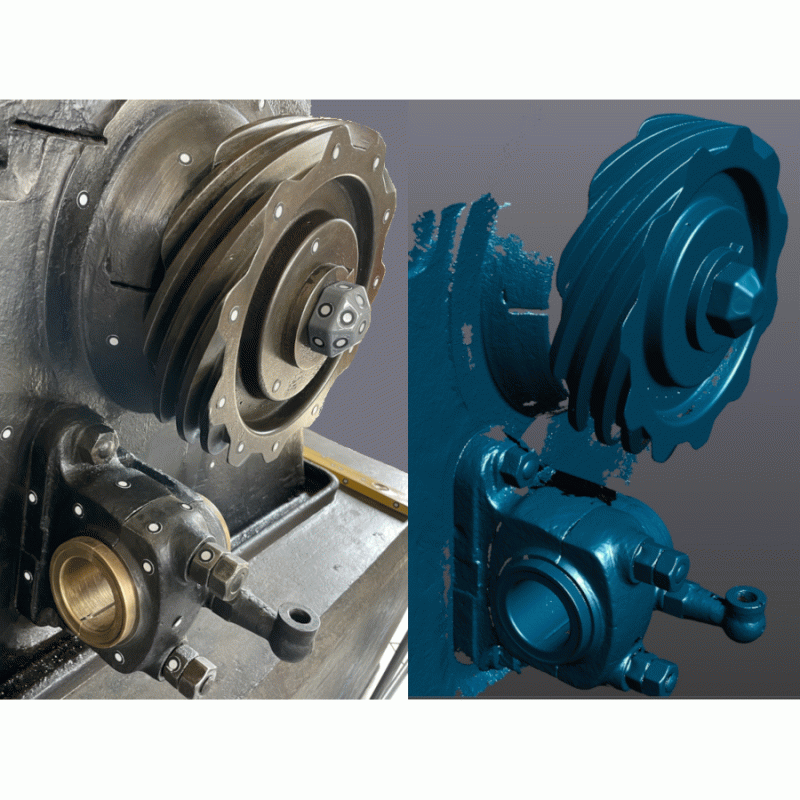

Scanning of counterparts to reconstruct the missing components

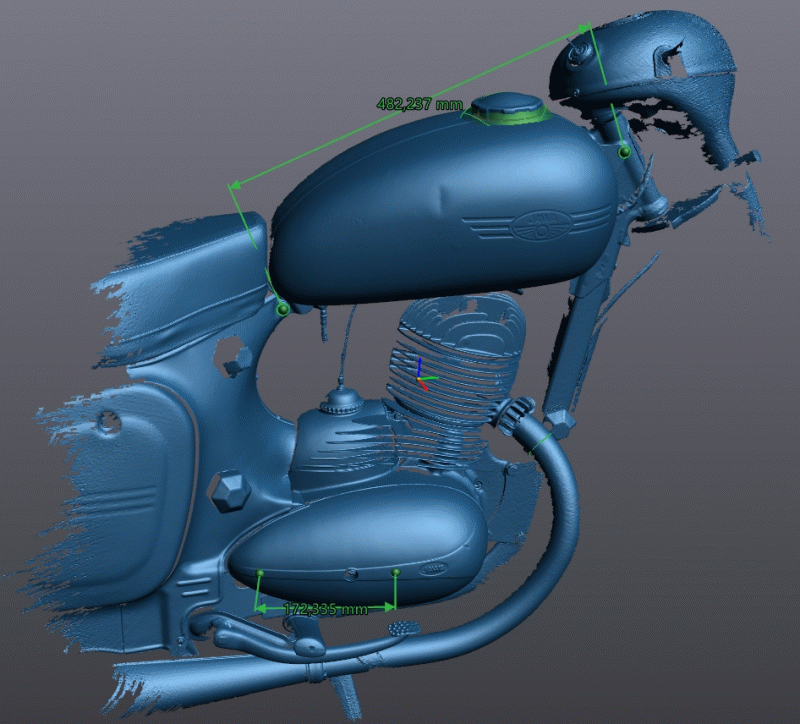

3D scanning of vintage motorcycle JAWA 250

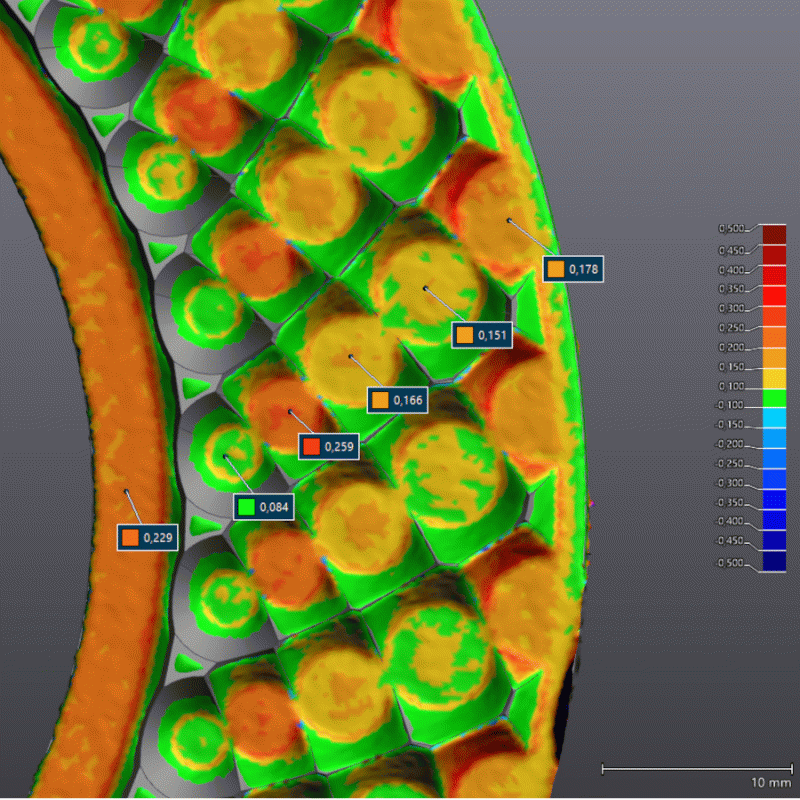

Deviations on scanned part versus CAD model

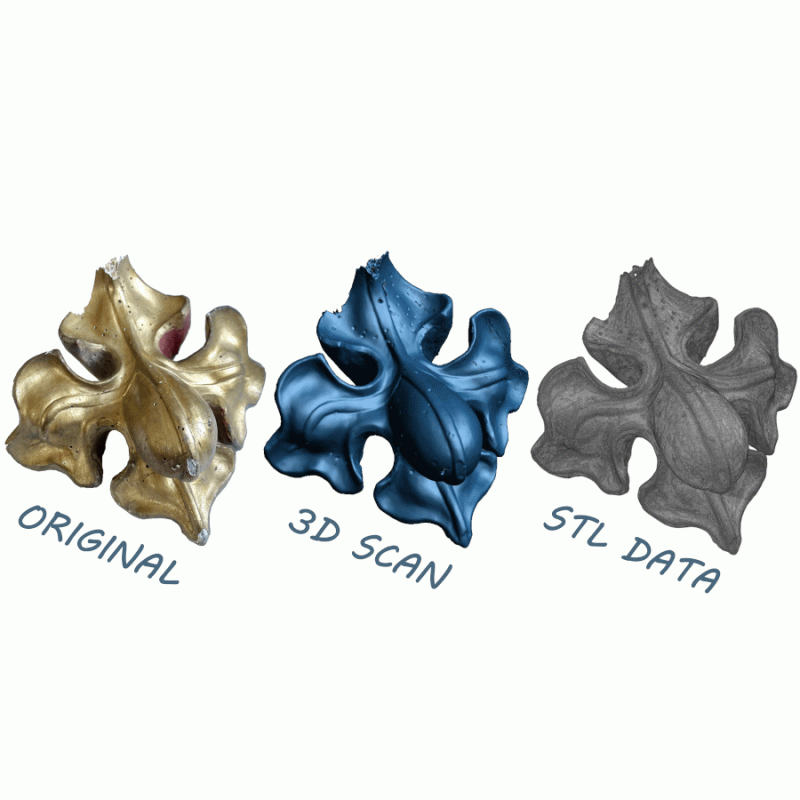

3D scanning for Art restoration

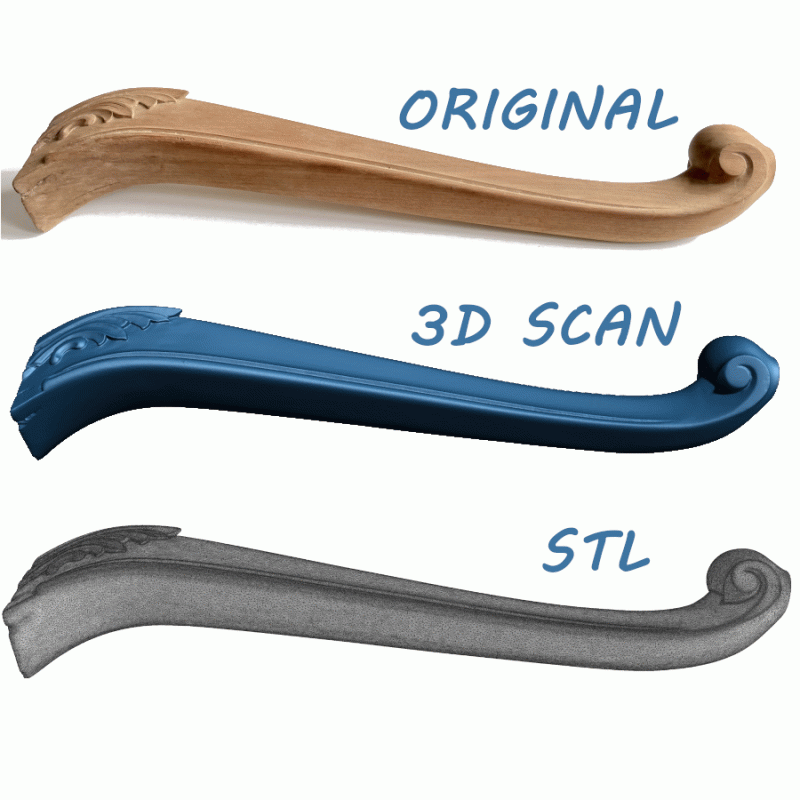

Scanning of wooden furniture components
Get fast a high accuracy 3D model of a real part
Effective tool for reverse engineering, quality check and deviation measuring.
Portable laser scanner CREAFORM HandyScan3D Sliver
- Accuracy 0.030mm; volumetric accuracy 0.020 ± 0.060 mm/m
- Part dimension 0.01 - 4 m
What we offer:
- Comprehensive service including production of the new part by machining or 3D printing
- 3D model and 2D drawings for your production
- Data processing with various output (stp, stl, igs, etc.)
- Fast service at your facillity or inhouse
- Inspection analyzes including geometric deviations
- Measuring of geometric deviations cmparing a 3D model
- Measuring of geometric deviations by mutual comparing of serial parts
- Issue of inspection reports
What you get:
- Time saving
- Missing production drawings and documentation
- Reconstruction of missing component by scanning of counterparts
- Data for 3D printing or machining CAM
- Replica of the original part
Examples:
- Creating a documentation for new production of damaged part
- Reconstruction of missing shafts, gears etc.
- Dimensional and shape measuring of castings, molds and other tools
